Solutions
Spine Centers
Features
- Modern user interface helps the user understand the “state” that the table is currently in e.g. locked, unlocked, tilted, trend or reverse trend
- Innovative “H-Bracket” design ensures that if the pin connecting the H-Bracket to the table base is accidentally pulled, the patient support top will not fall to the floor
- Central locking castors controlled directly from the pendant
- EZ Roll castors help the caregiver when transporting the table around the OR
- Numbered H-Brackets help with communication between caregivers when attaching the different tops to the base
- 360° rotation capabilities Specs
- Patient Weight Capacity: 600 lbs (272.2 kg)
- Table Weight (without a support top): approximately 325 lbs (147 kg)
- Rail Top Weight: approximately 21 lbs (9.5 kg)
- Flat Top Weight: approximately 36.5 lbs (16.5 kg)
- Length (retracted to fully extended): 69" to 109" (175.3 cm to 276.9 cm)
- Width: 32.5" (82.6 cm)
- Column Height (measured from the support top to the floor): 26.5" to 50" (67.3 cm to 127 cm) (electronically adjustable)
- Electronic Rotation: 25° clockwise and counterclockwise (can be locked at any point within this range)
- Manual Rotation: 360° (can be locked at horizontal only)
- Maximum Trendelenburg & Reverse Trendelenburg: 10°
- CE marked
Special Features
#A-70000, #A-70002
Transform Your OR Table into a Specialized Spine Table

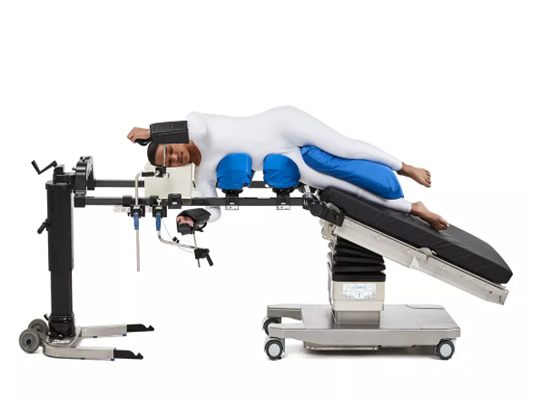

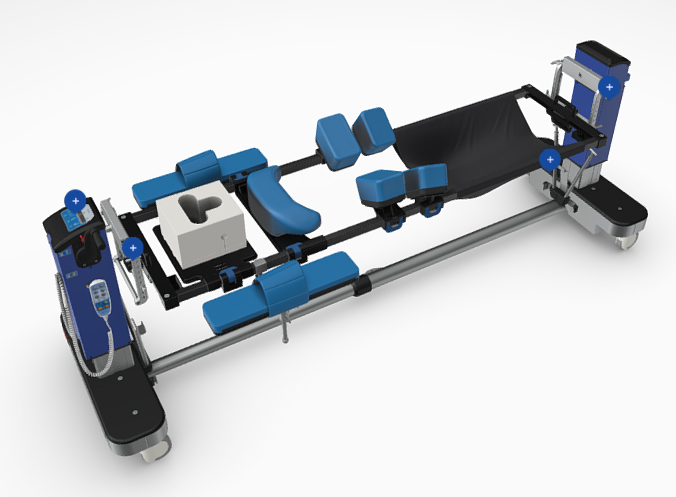

Elevate the capabilities of your standard OR table with the Allen Spine System—an advanced yet cost-effective solution that supports cervical, thoracic, and lumbar procedures with precision and ease.
The Allen Spine System is a versatile extension that enables your OR table to accommodate a comprehensive range of spine surgeries. It delivers the positioning advantages typically found in standalone spine tables like the Allen Advance Table.
Premium Package Upgrade Enhance your surgical setup with the Premium Package, which includes the C-Flex Head Positioning System. This system is compatible with both headrests and skull clamps and features "squeeze and position" technology for quick, precise adjustments of the head and cervical spine during surgery.
Imaging Access The system provides C-Arm and O-Arm access, ensuring the radiolucency benefits of a standalone spine table, all while utilizing the power of your existing operating table.
Intraoperative Flexibility The Allen Spine System is designed to help allow for intraoperative lumbar flex and patient repositioning. Additionally, its compact design ensures a small storage footprint, ideal for OR suites with limited space. The system's accessories are fully adjustable to accommodate each patient’s unique anatomy.
